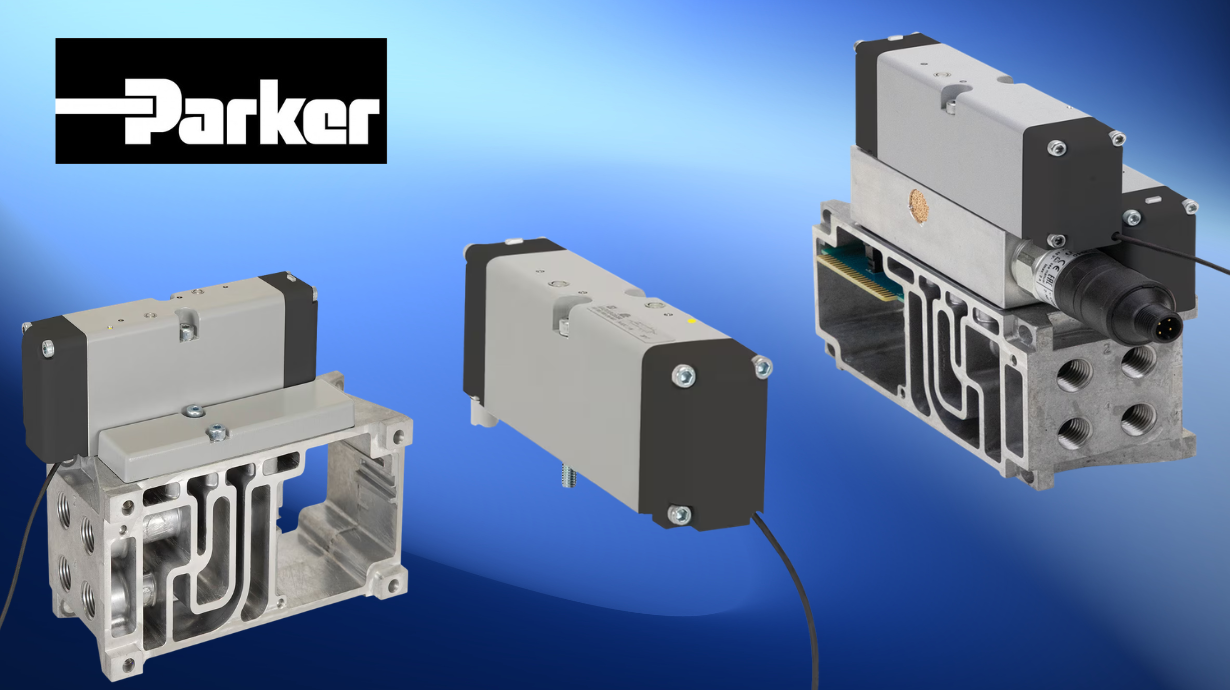

HA Sensing Valve Mechanics

In today’s automated industrial environments, unplanned downtime is costly—and diagnosing the root cause can take even longer than fixing the issue itself.

One of the most common challenges in pneumatic systems is determining whether a valve actually shifted when commanded. In many applications, operators only receive electrical confirmation that a solenoid was energized. While this confirms a signal was sent, it does not verify that the valve spool physically moved.

That diagnostic gap can significantly impact uptime, maintenance efficiency, and overall system reliability.

The Hidden Problem with Traditional Valve Feedback

Standard pneumatic valve systems typically confirm:

  • PLC output signal was sent
  • Solenoid coil energized
  • Electrical power is present

However, they often cannot confirm:

  • Whether the spool fully shifted
  • If the valve is sticking or binding
  • Whether contamination is causing internal drag
  • If air pressure issues are preventing actuation

Without this level of visibility, maintenance teams are forced into reactive troubleshooting methods.

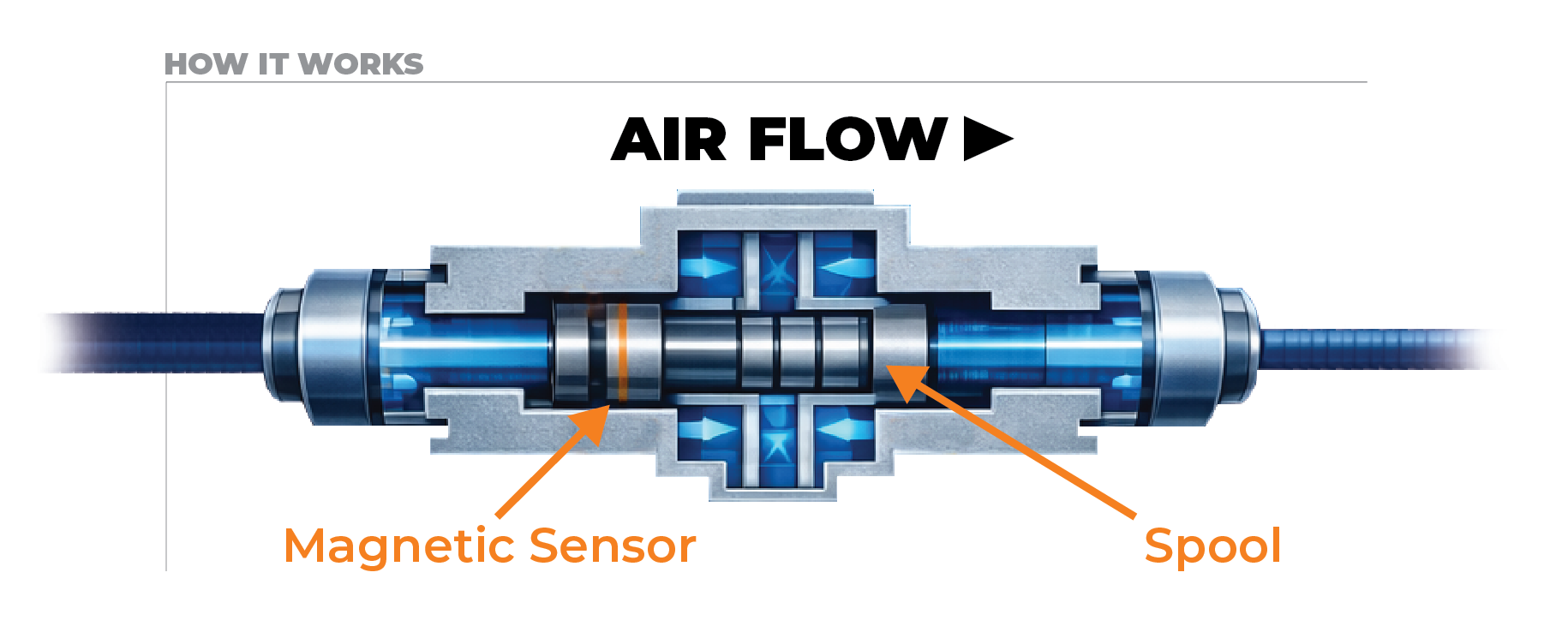

What Is HA Spool Sensing?

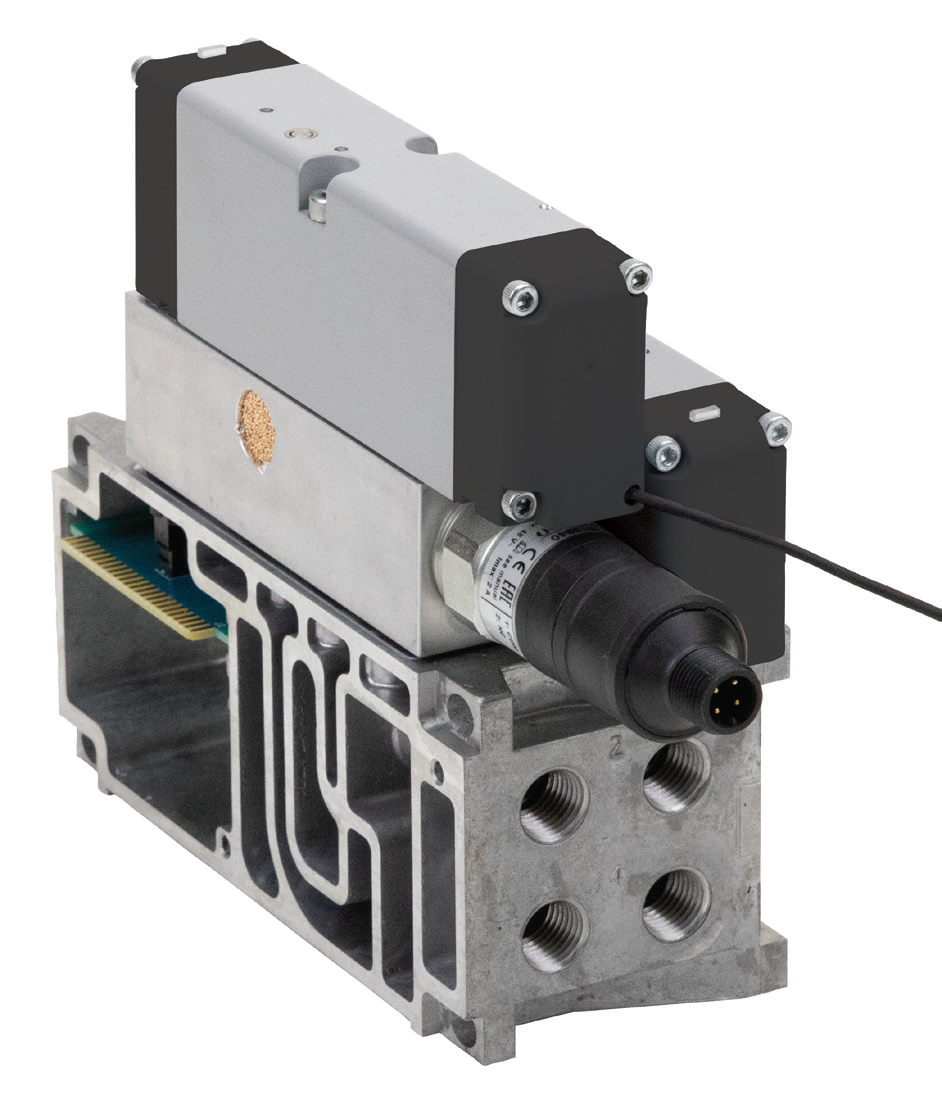

HA spool sensing provides real-time, physical confirmation that the valve spool has shifted as intended.

Instead of relying solely on electrical feedback, spool sensing verifies the mechanical movement inside the valve, giving operators and technicians a more accurate picture of system performance.

Download more information.

Key Benefits of HA Spool Sensing

  • Faster fault isolation – Identify issues quickly without guesswork
  • Reduced downtime – Minimize production interruptions
  • Lower maintenance costs – Avoid unnecessary valve replacements
  • Improved predictive maintenance – Gain better system visibility
  • Enhanced machine reliability – Ensure valves perform as expected

Why Spool Sensing Matters in Real-World Applications

In industries like packaging, material handling, and industrial automation, a single valve failure can bring an entire process to a halt.

With HA spool sensing, maintenance teams can:

  • Pinpoint the exact failed valve slice
  • Determine whether the issue is electrical, pneumatic, or mechanical
  • Reduce troubleshooting time from hours to minutes
  • Increase confidence during startup and commissioning

Smarter Diagnostics for Better Uptime

As manufacturers prioritize uptime, efficiency, and data-driven maintenance, advanced diagnostics are becoming just as important as component performance.

HA spool sensing bridges the gap between machine command and actual response, delivering the insight needed to keep systems running efficiently.

Improve Your Pneumatic System Performance with Triad Technologies

At Triad Technologies, we help customers implement smarter pneumatic solutions that reduce downtime and improve reliability.

If you're looking to enhance your valve diagnostics with HA spool sensing, our team is ready to help you evaluate and implement the right solution for your application.

Start here: Contact Us - Triad Technologies
