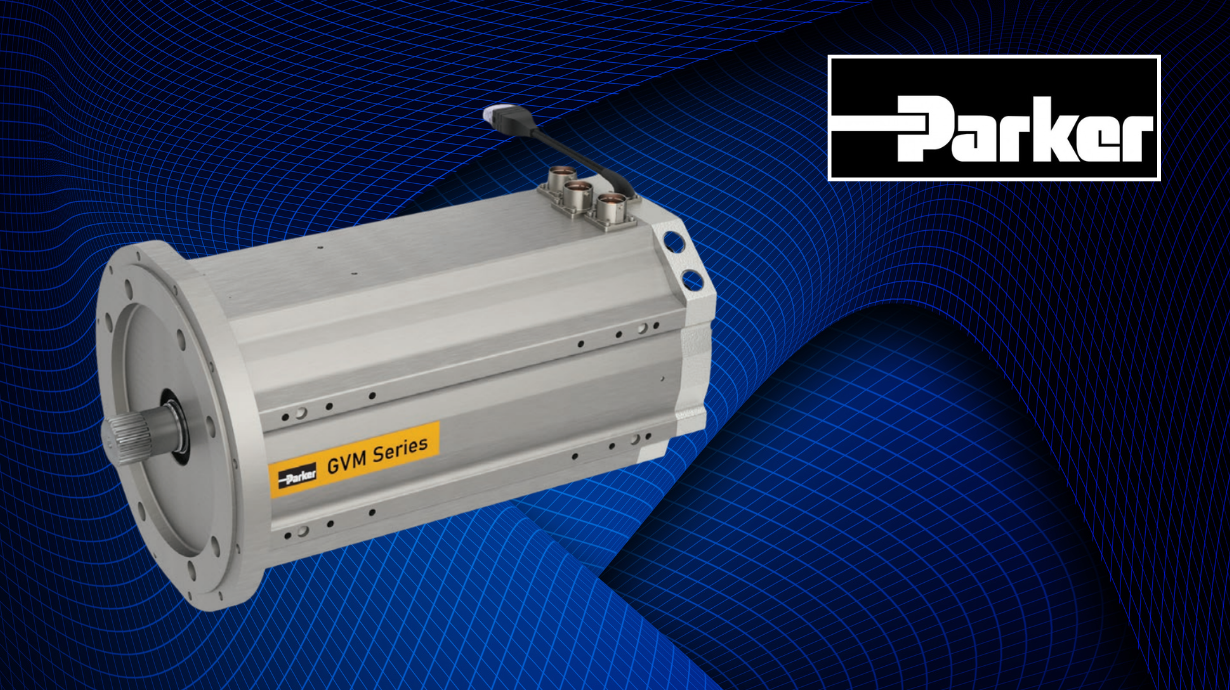

GVM motor from Parker Hannifin

As electrification accelerates across heavy-duty vehicles, OEMs need motors that deliver power density, efficiency, and scalability without adding complexity. At Triad Technologies, we partner with Parker Hannifin to implement proven solutions like the Global Vehicle Motor (GVM) platform—purpose-built for electric and hybrid truck and bus applications.

Engineered for Propulsion & Auxiliary Systems

Parker’s GVM platform is a permanent magnet AC (PMAC) motor family designed to support propulsion, generator, and auxiliary functions across medium- and heavy-duty vehicles.

From traction systems to electro-hydraulic pumps and compressors, GVM motors provide a flexible electrification foundation for modern mobile equipment.

High Power Density Meets Efficiency

The GVM platform is built to maximize performance while minimizing energy consumption:

  • Up to 409 kW peak power for demanding propulsion needs
  • Continuous power up to 228 kW for sustained operation
  • Peak torque up to 1430 Nm for high-load applications
  • Wide voltage range (24–800 VDC) for system flexibility
  • High efficiency + low inertia design for improved vehicle range and responsiveness

The result is improved drivability, longer operating range, and lower total cost of ownership.

Compact, Scalable, and Easy to Integrate

GVM motors are designed with OEM integration in mind:

  • Patented integral cooling system reduces size without sacrificing power or torque
  • Multiple frame sizes (142, 210, 310 mm) and stack lengths for scalable performance
  • Standard traction and pump mounting options for simplified installation
  • Performance-matched inverter compatibility for optimized system efficiency

This flexibility allows OEMs to tailor motor performance precisely to vehicle requirements while accelerating time to market.

Built for Heavy-Duty Reliability

Electrified vehicles still face harsh environments and GVM motors are built accordingly:

  • Tested to SAE J1455 standards for durability
  • Designed for on- and off-road applications including trucks, buses, and vocational equipment
  • Engineered to improve system efficiency, safety, and reliability in real-world conditions

Ideal Applications

  • Electric & Hybrid Trucks
  • Transit & School Buses
  • Electro-Hydraulic Power Steering (EHPS)
  • Electric Power Take-Off (ePTO) Systems
  • Compressors & Auxiliary Drives

Electrify with Confidence

Triad Technologies helps OEMs implement Parker GVM motors with expert application engineering, system integration, and ongoing support—reducing risk and accelerating electrification success. From selecting the right motor configuration to integrating drives, controls, and hydraulic systems, our team works alongside you to optimize performance for efficiency, safety, and reliability.

Whether you’re retrofitting existing equipment or designing next-generation electric machinery, Triad provides the expertise to move your project forward with confidence. The shift to electrification is already here—partner with Triad Technologies to stay ahead.

Start your project: https://www.triadtechnologies.com/contact
