Parker P1M Piston Pump

In mobile hydraulics, the challenge isn’t just generating power—it’s doing it at higher speeds, more efficiently, and in less space than ever before. That’s where Parker’s new P1M Series comes into play; an open-circuit axial piston pump designed for mobile applications and built to perform.

A New Approach to Mobile Pump Design

Instead of just improving one metric, the P1M focuses on the combination that matters most:

  • Higher Operating Speeds
  • Improved Efficiency
  • Compact Design
  • Smarter Control Options

What Sets the P1M Apart

Higher Operating Speeds

The P1M uses a redesigned inlet that increases performance while reducing erosion, cavitation and pressure ripples. That means you can push cycle times harder without increasing wear or risking premature failure.

Improved Efficiency

Higher efficiency translates directly into lower fuel consumption and longer battery runtime—especially in applications with long duty cycles.

Compact Design

The P1M was designed with power density and space constraints in mind, meaning you get easier integration into compact machine designs.

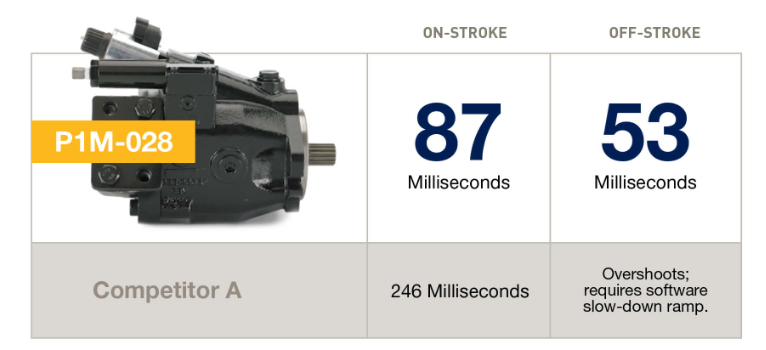

Smarter Control Options

With patented high-response electronic displacement control (ECD), the P1M fits into the growing shift toward smarter hydraulics. You get simplified programming, faster response times, and better machine integration.

5 Practical Reasons to Consider the P1M

1. You can increase machine output without upsizing your system

Higher speeds and efficiency mean more work per cycle.

2. You can reduce total cost of ownership

Efficiency + durability = lower fuel and maintenance costs over time.

3. It supports the shift toward electrification

Efficiency gains directly extend battery runtime.

4. It simplifies system design

Compact size and flexible configurations reduce design constraints.

5. It’s built for modern control strategies

Electronic displacement control opens the door for smarter, more responsive machines.

Where the P1M Makes the Biggest Impact

The P1M is designed for a wide range of mobile applications, particularly those where efficiency, performance, and packaging constraints are critical:

  • Construction Equipment
  • Mining
  • Agriculture
  • Utility
  • Refuse
  • Forestry
  • Crane
  • Material Handling
  • Military

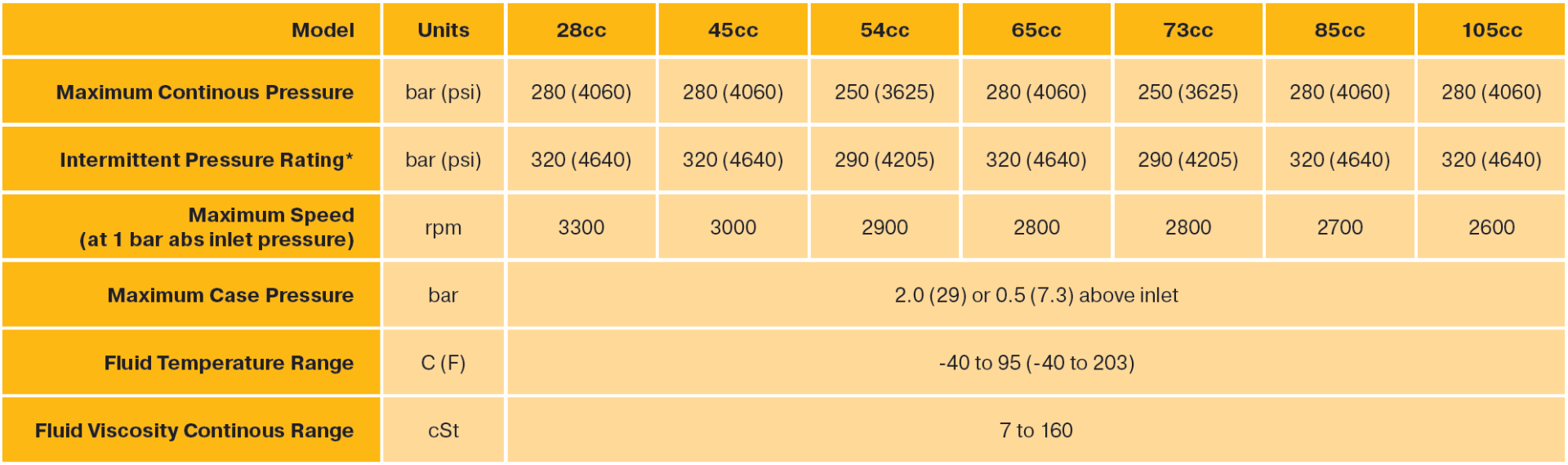

Specs at a Glance

Designed and manufactured in the U.S., the P1M is available in sizes, 28, 45, 54, 65, 73, 85, 105 cc/rev.

Is the P1M the Right Fit for Your Application

The P1M is a strong option when:

  • You’re trying to increase performance without increasing system size
  • Efficiency (fuel or battery) is a priority
  • You need flexibility in controls and integration
  • Packaging constraints are limiting your current design

Whether you’re designing new equipment or optimizing an existing system, the P1M offers a strong option for improving performance and efficiency. Our engineers can help you size, specify, and implement the right configuration so you get the most out of your hydraulic system. Contact our team to talk through your application.
