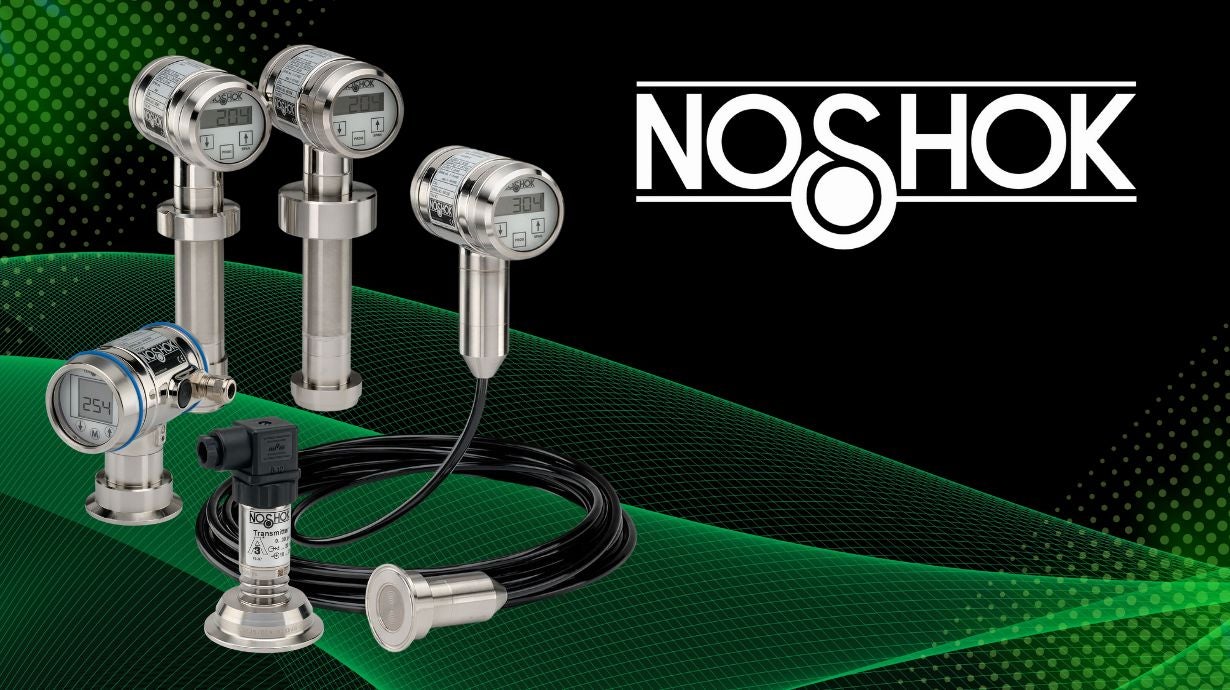

NOSHOK pressure and level transmitters

In the food, beverage, pharmaceutical, and biotech industries, sanitary process control isn’t just about precision - it’s about protecting product integrity and consumer safety. Every pressure and level reading impacts quality, consistency, and compliance. That’s why Triad is proud to carry NOSHOK sanitary pressure and level transmitters, engineered to deliver accurate, stable, and hygienic performance in the most demanding clean-in-place (CIP) and steam-in-place (SIP) environments.



NOSHOK’s sanitary transmitters are designed to meet or exceed the toughest regulatory standards for cleanliness and compliance, including 3-A, ASME-BPE, and FDA guidelines. When paired with proper installation and calibration, these instruments help facilities maintain audit-ready compliance while reducing downtime and maintenance costs. Click through the tabs below to view the key features and benefits of NOSHOK’s reliable sanitary transmitters.

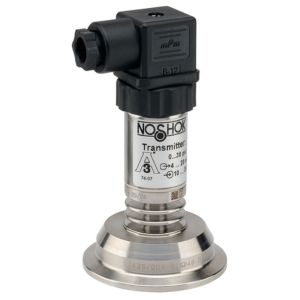

11 Series

Sanitary Clamp Pressure Transmitters

Engineered for direct mounting into hygienic lines, the NOSHOK 11 Series offers a compact, high-accuracy solution for everyday process monitoring.



Key Features:

•  Pressure ranges from vacuum through 0 psig to 400 psig

•  Standard 1½″ or 2″ sanitary clamp connection

•  ±0.25% FS (BFSL) accuracy (optional ±0.125% FS)

•  Flush diaphragm construction that eliminates product buildup

•  316L stainless steel wetted parts for corrosion resistance

•  CIP/SIP compatible and meets the requirements for 3-A

•  Low fill-fluid volume for faster temperature compensation

•  Full traceability and validation support

•  Ideal for food and beverage line pressure monitoring and pasteurization systems

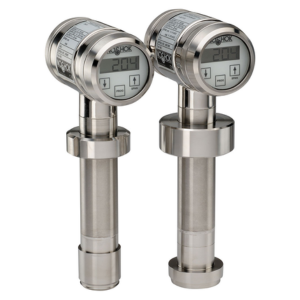

20 Series

Intelligent Sanitary Level Transmitters

The 20 Series provides precision hydrostatic level measurement for insulated tanks and silos in sanitary processes.



Key Features:

•  Pressure ranges from 16 inH2O to 1600 inH2O (58 psig)

•  ±0.1% of adjusted span accuracy, < 0.1% drift/year

•  10:1 turndown, active temperature compensation

•  One-piece solution for process connections/fittings

•  Optional HART® output and 360° rotatable display

•  Flush diaphragm construction that eliminates product buildup

•  316L stainless steel wetted parts for corrosion resistance

•  CIP/SIP compatible

•  Low fill-fluid volume for faster temperature compensation

•  Full traceability and validation support

•  Ideal for liquid level control in dairy, biotech, and beverage applications

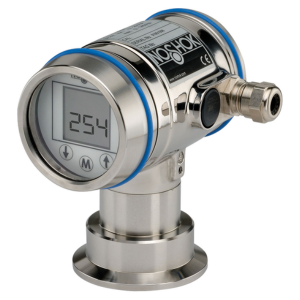

25 Series

Intelligent Pressure & Level Transmitters

When flexibility and local configuration are needed, the 25 Series combines smart electronics with hygienic construction.



Key Features:

•  Digital display and push-button setup

•  4:1 turndown ratio

•  Flush diaphragm construction that eliminates product buildup

•  316L stainless steel housing and wetted parts for corrosion resistance

•  CIP/SIP compatible

•  Low fill-fluid volume for faster temperature compensation

•  Full traceability and validation support

•  Ideal for single-wall tanks, such as balance tanks, line pressure, and other tri-clamp applications

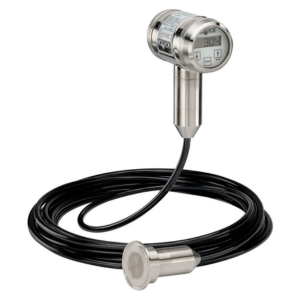

30 Series

"SNORKEL" Sanitary Pressure & Level Transmitters

The 30 Series Snorkel excels in compact skids, washdown areas, and remote installations.



Key Features:

•  Flush diaphragm construction that eliminates product buildup

•  Full stainless steel design for corrosion resistance

•  CIP/SIP compatible and meets the requirements for 3-A

•  Fast response and low fill-fluid volume, non-capillary system for faster temperature compensation

•  Full traceability and validation support

•  Ideal for space-constrained OEM systems and hazardous environments



NOSHOK’s sanitary pressure and level transmitters combine hygienic design, intelligence, and durability to deliver consistent measurement results in regulated environments.

Many industries can benefit from these reliable transmitters from NOSHOK. Some of the most common use cases include:

Food & Beverage Industry: Pressure and level control in mixing, bottling, and CIP systems

Dairy Industry: Pasteurization and holding tank monitoring

Pharmaceutical / Biotech Industry: Sterile process validation and filtration systems

Brewing & Distilling Industry: Fermentation tank pressure and CIP feedback

Chemical / Life Sciences Industry: Corrosion-resistant measurement for hygienic fluids



Partnering with Triad means more than just access to great instrumentation; as an authorized NOSHOK distributor and technical partner, we provide full engineering support, local inventory, and application expertise across the complete range of NOSHOK sanitary solutions. Our team of expert application engineers works directly with OEMs, integrators, and end-users to offer expert selection and sizing support, ensuring you always find the sanitary transmitters that meet your needs.



When reaching out to our engineering team for transmitter specification or support, here are a few tips to ensure you fin the best solution for your exact application:

Define Your Range: Confirm expected process and clean-cycle pressures.

Consider Cleaning Cycles: Verify temperature ratings for CIP/SIP (up to 293 °F for short exposure).

Check Drainability: Ensure transmitters can be installed with the diaphragm facing downward or horizontally.

Plan for Calibration: Take advantage of NOSHOK’s local configuration and HART options.

Simplify Inventory: Consider using turndown models to cover multiple ranges with fewer SKUs.



When reliability, compliance, and support matter - Triad Technologies is your trusted partner for NOSHOK instrumentation and hygienic process control solutions. Contact us today to connect with our application experts for guidance on selection, integration, sizing, or to request a quote.
