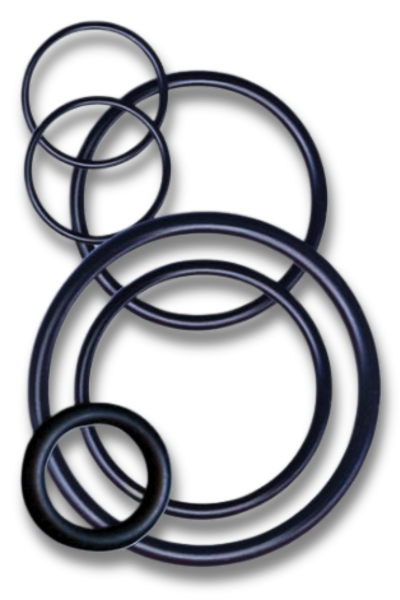

Blue Background with black O-Rings and Tech-Syn and All Seals & Hose logos

Following the acquisition of Tech-Syn and All Seals & Hose, Triad Technologies is excited to announce new material options for O-rings and molded shapes. When considering materials, it is important to take into account factors such as durometer, temperature, resistance to environmental conditions, and safety certifications to ensure superior product performance. Our materials are specially formulated to meet the stringent hygienic and safety standards required for handling food products.

 Material certifications include:

•  Food and Drug Administration (FDA) CFR 21 177.2600
•  European Commission (EC) 1935/2004

Click through the tabs below to view exact specifications for each of these materials and determine compatibility with your application.

75 Durometer Fluorocarbon Material (FKM)

Fluorocarbon, also known as FKM or Fluoroelastomer, is a synthetic rubber material known for its exceptional resistance to heat, chemicals, and ozone. It's a popular choice for seals and O-rings because it can handle a wide variety of applications, especially for moving equipment.

Certifications: FDA CFR 21 177.2600, EC 1935/2004, 3A 18-03 Class I Dairy, USP 87 (Elution Test), USP 88 Class VI -121C, ADI Free

Durometer: 75 (+/-5)

Temperature Range: -15F to 400F

Recommended Uses: Vacuum, Most Acids/Chemicals, Halogenated Hydrocarbons, Di-Ester, Lubricants, Petroleum Oils/Fuels, Silicone Oils/Greases

Common Applications: Chemical Processing, Aerospace, Oil and Gas, Automotive Fuel, Life Science, Pharma and Medical, Food Grade

Mechanical Properties: Good Wear Resistance, Good Compression Set Resistance, Moderate Short-Term Resilience, Excellent Permeation Resistance

70 Durometer Ethylene Propylene Diene Monomer Material (EPDM)

Ethylene Propylene Diene Monomer, also known as EPDM or EPDM rubber, is a synthetic rubber material known across many industries for its versatility and durability.

Certifications: FDA CFR 21 177.2600, EC 1935/2004, NSF 61, ACS, WRAS, UL157, ADI Free

Durometer: 70 (+/-5)

Temperature Range:  -65F to 250F

Recommended Uses: Water and Steam, Auto/Aircraft, Brake Fluids, Some Acids and Bases, Ketones and Alcohols, Plumbing

Common Applications: Life Science, Pharma and Medical, Food Grade, Drinking Water

Mechanical Properties: Good Wear Resistance, Good Compression Set Resistance, Moderate Short-Term Resilience, Good Permeation Resistance, Sunlight & Ozone Resistant, Weather Resistant



For additional information about O-rings, seals, kitting services, and more, contact our team of materials specialists today.
